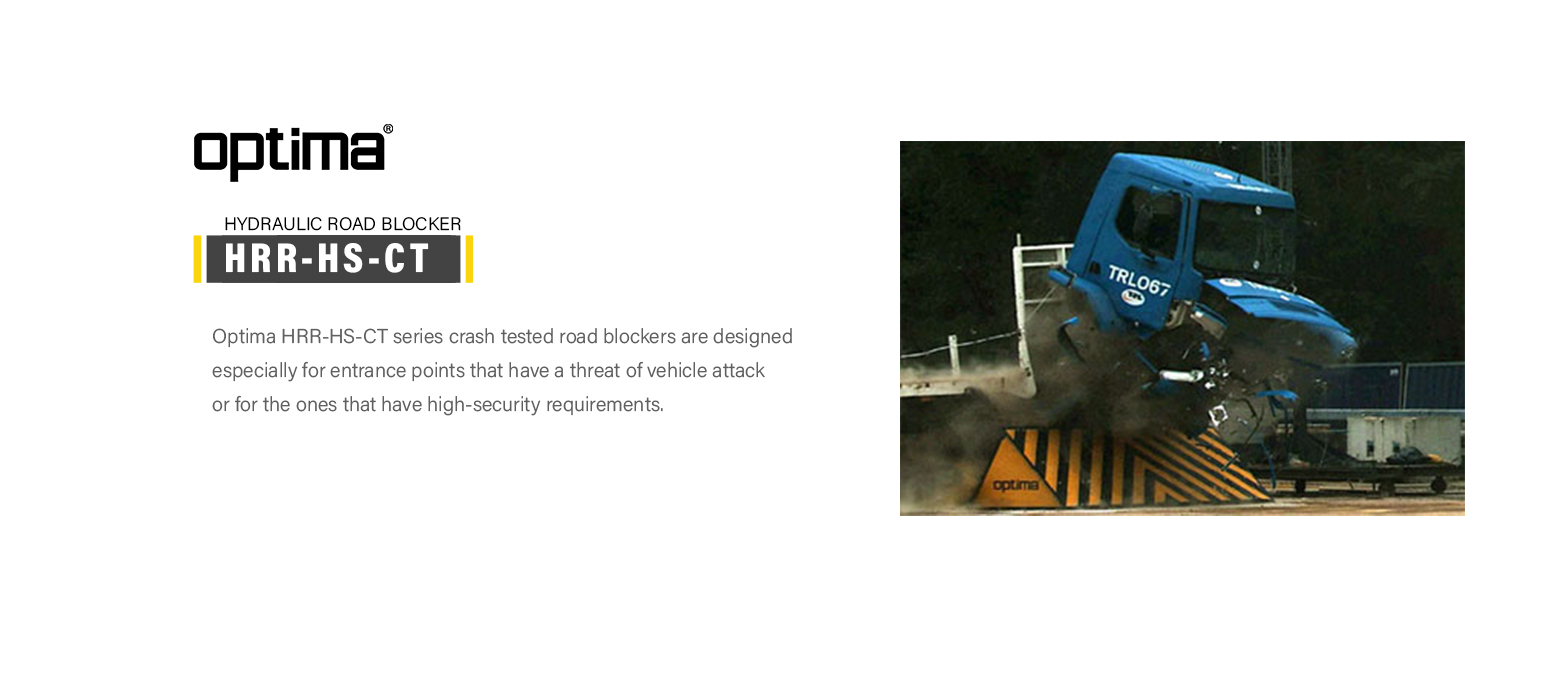

Hydraulic Road Blocker
HRR-HS-CT
(Zero Penetration)
SPECIFICATIONS | |
Test parameters | PAS68: V/7500[N3]/80/90:0.0/6.15 |
Equivalent to | K12, M50, ASTM F2656, IWA14-1 |
Height when raised | 1100 mm |
Width | 1500 - 6000 mm |
Color | RAL1028 traffic yellow / RAL9005 black |
Axle load resistance | 50 tons per axle |
Structure | Heavy duty |
Top plate | Plain, or Checkered (optional), painted yellow with black stripes |
Type of steel | S235 |
Traffic light | Red/green LED, 200 mm diameter, steel post 2 m height and electrostatic powder coated |
Hinges | Heavy duty, special design hardened steel |
Power | 380 V, 3 Phase, 50-60 Hz (or 220 V/ 440 V etc., three phase, 50-60 Hz optional by a transformer) |
Power failure | Manual hand pump, (or Hydraulic accumulator, DC motor and batteries or UPS (optional)) |
Speed | 3-5 seconds, in emergency 1.5 seconds (optional) |
Desktop keyboard | Raise, lower, emergency stop, key operated, keyboard in use light indicator |
Extra I/O at the PLC | Enough I/Os to connect any card reader, extra override keyboard etc. later on |
Proximity sensor | Available to sense the position of the blocker |
Dual vehicle safety loop detector | This detector is used for safety |
Motor Power | Min 4 KW, 1500 rpm |
Environmental conditions | -25 °C and +65 °C, %95 non-condensing humidity |
Environmental conditions (optional) | -40 °C and +70 °C, %95 non-condensing humidity |
